Sodick 와이어 커팅 EDM CNC 프로그래밍 예

제출자:Vikram

요약

Mark 21 / Mark 25 CNC 컨트롤이 있는 Sodick Wire Cutting EDM CNC 기계의 CNC 프로그램 예.

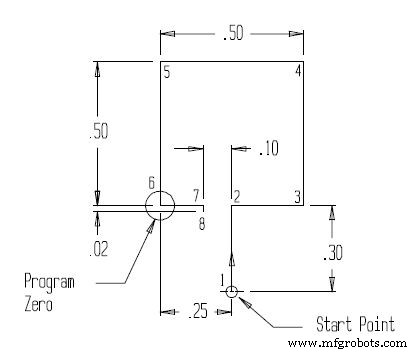

그림/이미지

CNC 프로그램

N005 G54 (SELECT COORDINATE SYSTEM A00)
N010 G92 X.250 Y-.300 (SET PROGRAM ZERO)
N015 G90 (SELECT ABSOLUTE MODE)
N020 C411 (SELECT CUTTING CONDITION)
N025 G42 H061 (SELECT RIGHT OFFSET AND VALUE)
N030 T94 (SUBMERGE MODE )
N031 T91 ( AUTO WIRE THREAD)
N035 T84 (HIGH PRESSURE FLUSH ING)
N040 G01 Y0 (MOVE UP IN Y)
N045 X.5 (MOVE TO THE RIGHT)
N050 Y.500 (MOVE UP IN Y)
N055 X0 (MOVE TO THE LEFT)
N060 Y0 (MOVE TO PROGRAM ZERO)
N065 X.150 (MOVE TO MOO POINT)
N070 G40 Y-.02 (MOVE TO POINT 8 AND CANCEL OFFSET)
N075 M00 (PROGRAM STOP TO SUPPORT PART)
N080 G01 X.250 (MOVE TO ENTRY LINE)
N090 G01 Y-.300 (MOVE BACK TO START POINT)
N095 M02 (END OF PROGRAM)
