제출자:Brian

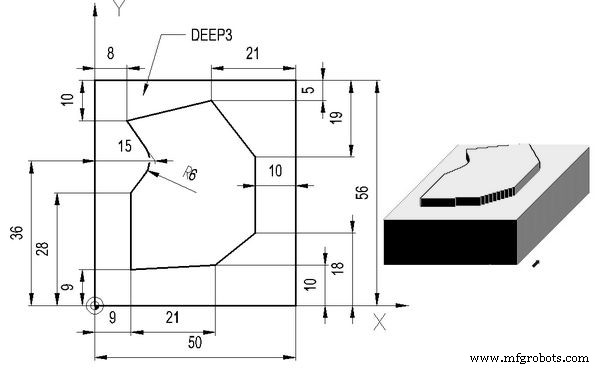

0 BEGIN PGM 1 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-20 2 BLK FORM 0.2 X+50 Y+56 Z+0 3 TOOL DEF 1 L+0 R+6 4 TOOL DEF 2 L+0 R+15 5 TOOL CALL 1 Z S 2400 6 L X-20 Y+9 Z+2 R0 FMAX M03 7 L Z-3 RR F40 M 8 L X+30 Y+10 R F80 M 9 L X+40 IY+8 R F M 10 L Y+37 R F M 11 L X+29 Y+51 R F M 12 L X+8 IY-5 R F M 13 L X+15 Y+36 R F M 14 L X+9 Y+28 R F M 15 L Y-15 R F M 16 L Z+2 R0 FMAX M 17 TOOL CALL 2 Z S 1800 18 L X-20 Y+5 Z+2 R0 FMAX M03 19 L Z-3 RR F40 M 20 L X+42 R F80 M 21 L Y+53 R F M 22 L X-20 R F M
CNC 기계
제출자:기계공 그림/이미지 CNC 프로그램 0 BEGIN PGM FK3 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-402 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 1 L+0 R+54 TOOL CALL 1 Z S5005 L M66 L X-20 Y-20 R0 FMAX M37 L Z+2 FMAX8 L Z-10 F5009 L X+0 RL10 L Y+12.711 CC X+12.7 Y+12.712 C X+5.361 Y+23.064 DR-13 L X+71.611 Y+69.9814 CC X+76.2 Y+63
제출자:cnc 프로그래머 그림/이미지 CNC 프로그램 0 BEGIN PGM FK2 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-402 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 1 L+0 R+54 TOOL CALL 1 Z S5005 L M66 L X-20 Y+30 R0 FMAX M37 L Z+2 FMAX8 L Z-10 F5009 L X+2 Y+30 RL10 CC X+20 Y+3011 C X+5.6 Y+40.8 DR-12 L X+38 Y+8413 CC X+50 Y+7514 C X+63.656 Y+8
